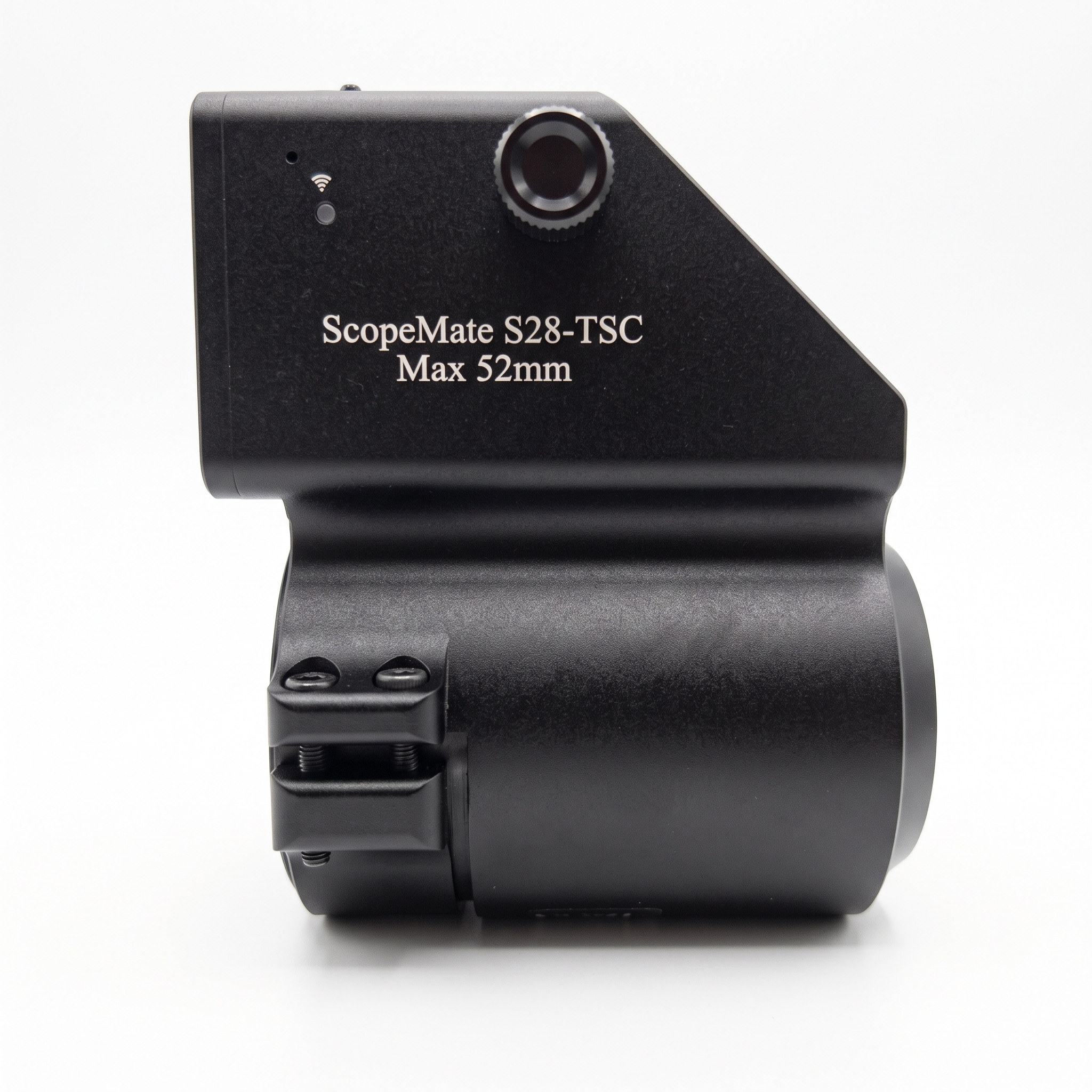

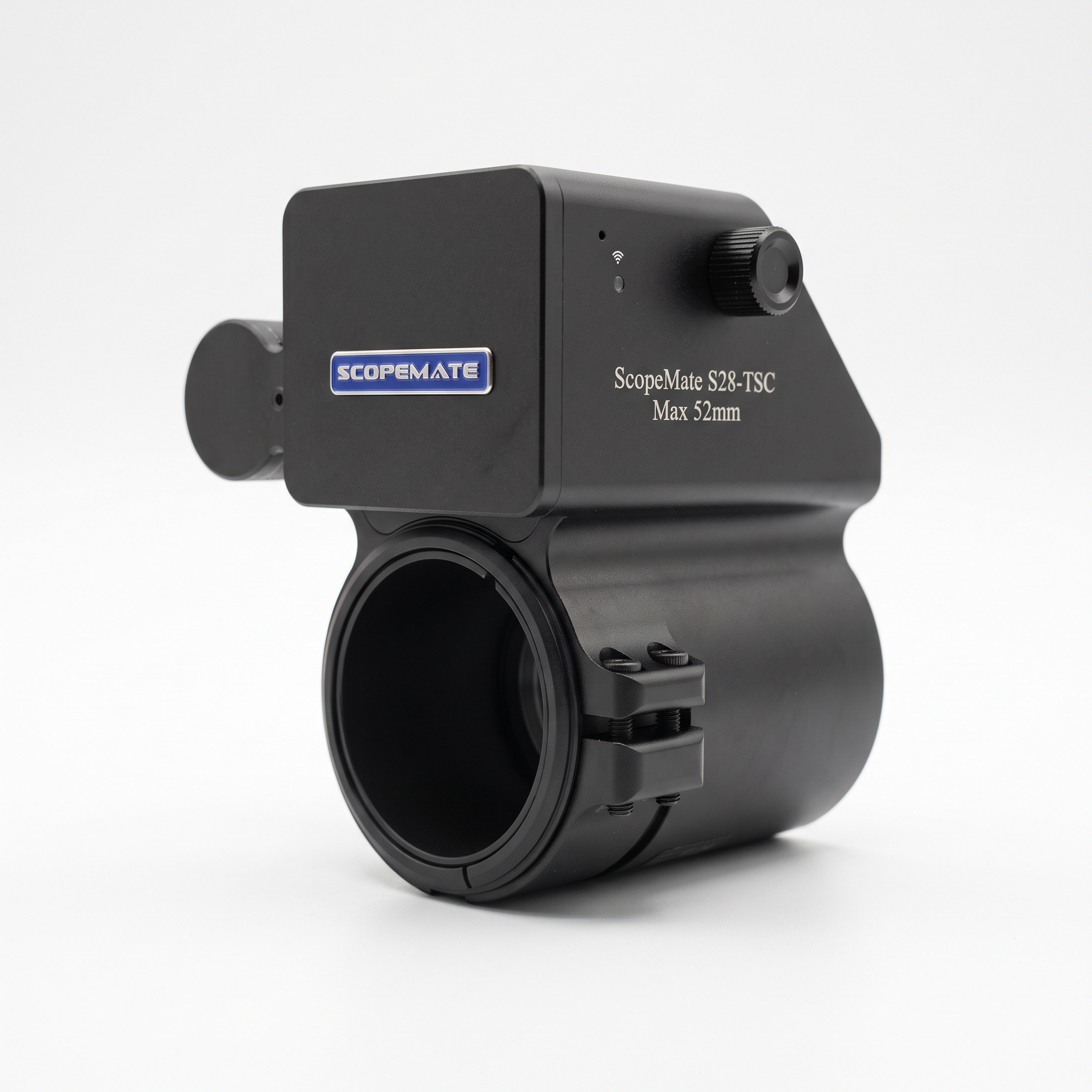

ScopeMate S28-TSC Max 4K Scope Camera

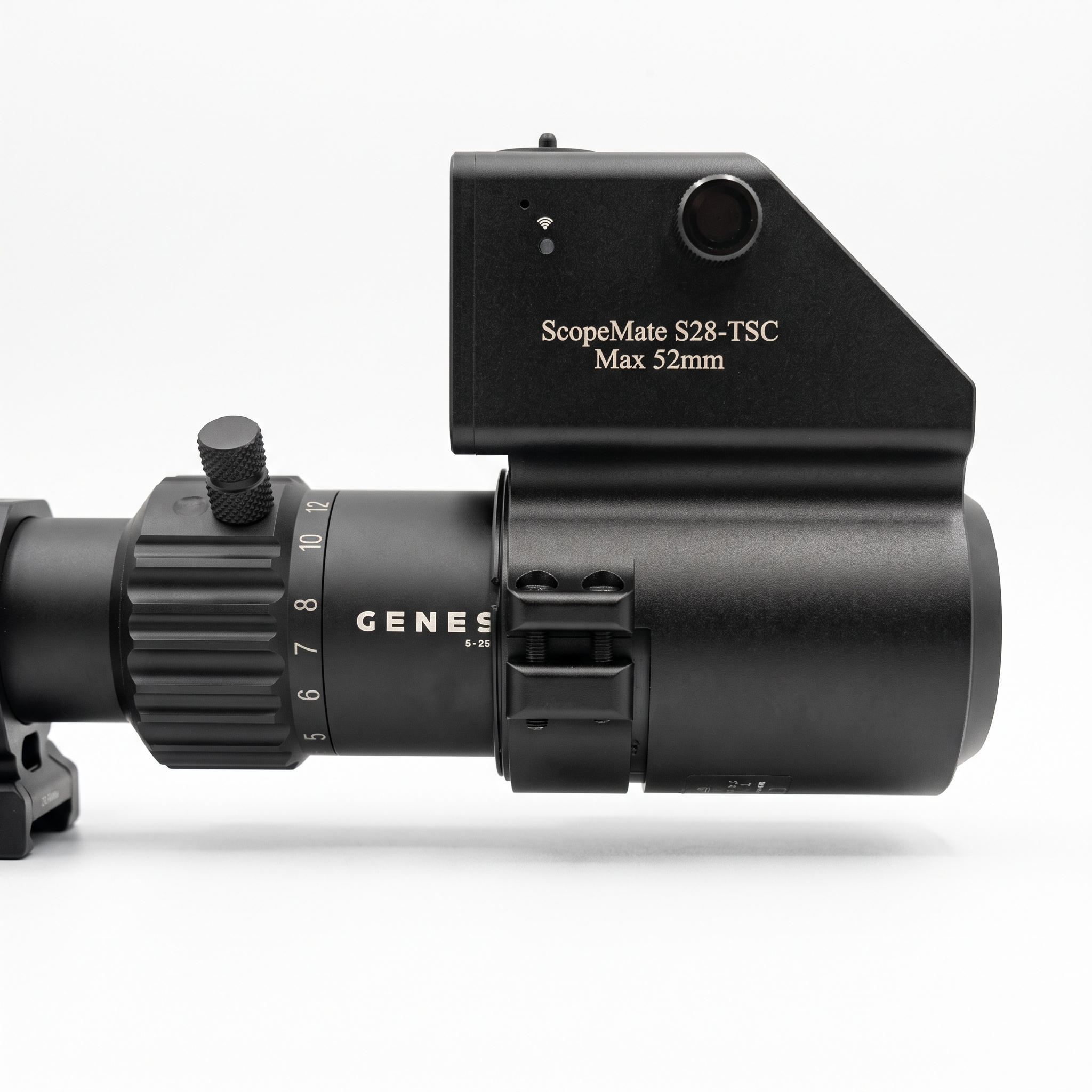

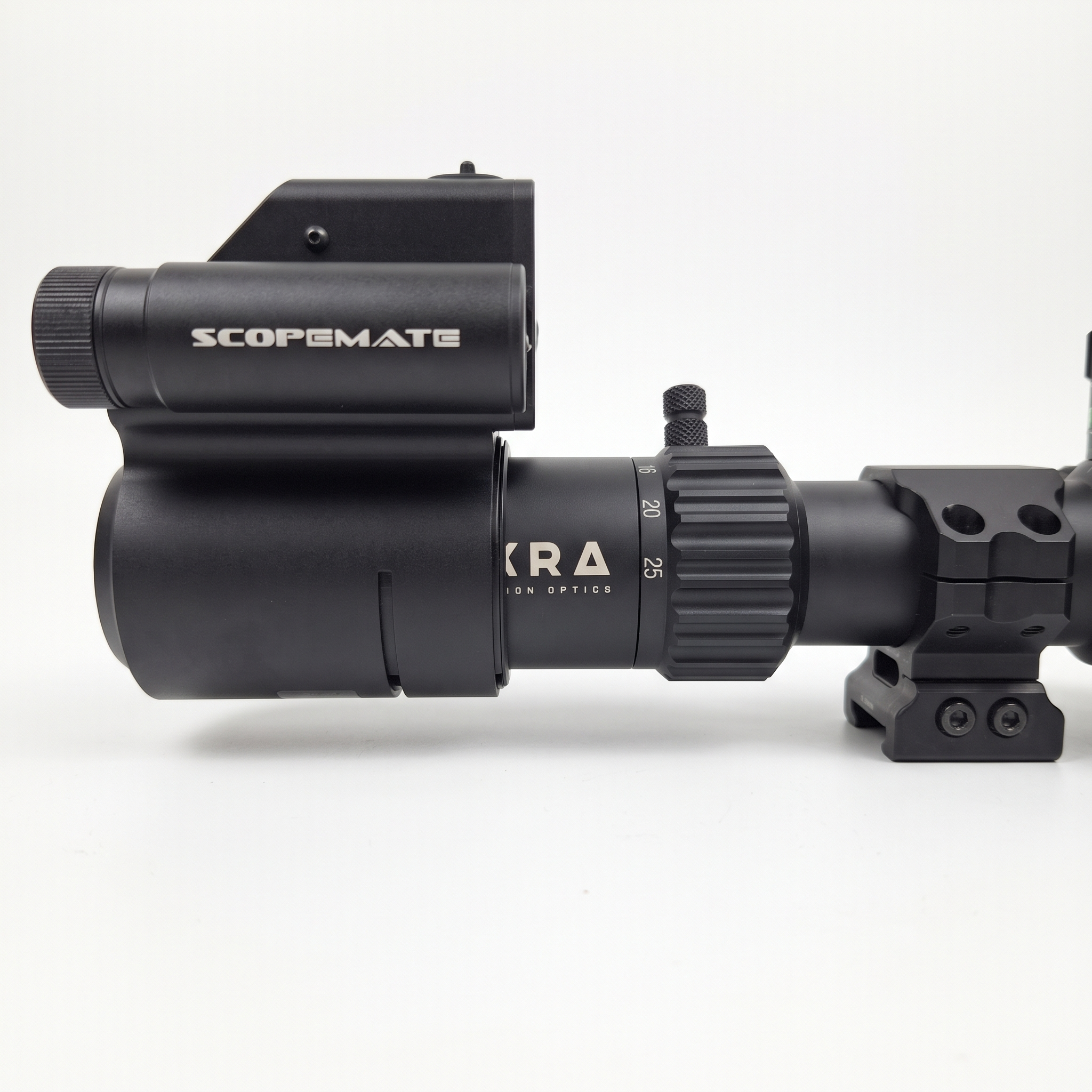

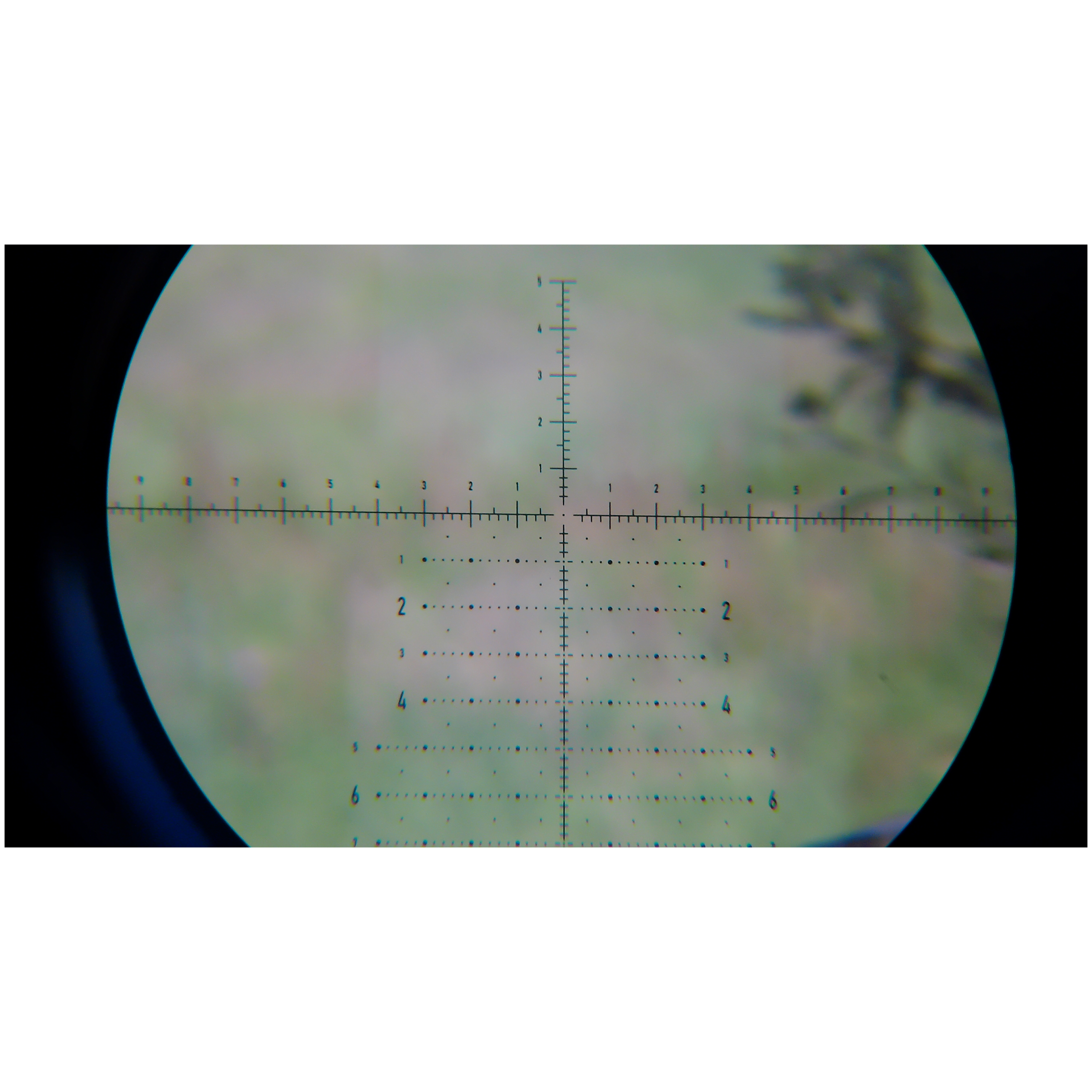

Capture every detail through your optic with the ScopeMate S28-TSC Max, a premium 4K scope camera and recorder engineered to withstand large-caliber recoil. Featuring an optimized, lightweight aluminum housing, this unit records directly through your rifle scope to deliver unparalleled point-of-view footage. With built-in Wi-Fi and seamless app integration, you can easily live stream, review, and share your most critical moments right from the field.
Key Features
-
Ultra HD Recording: Capture crisp footage through your scope up to 4K resolution at 60 fps, with additional modes for 2.7K, 1080p, and 720p.
-
Recoil-Activated Capture: Intelligent recording allows you to capture video automatically before and after firing, ensuring you never miss a shot.
-

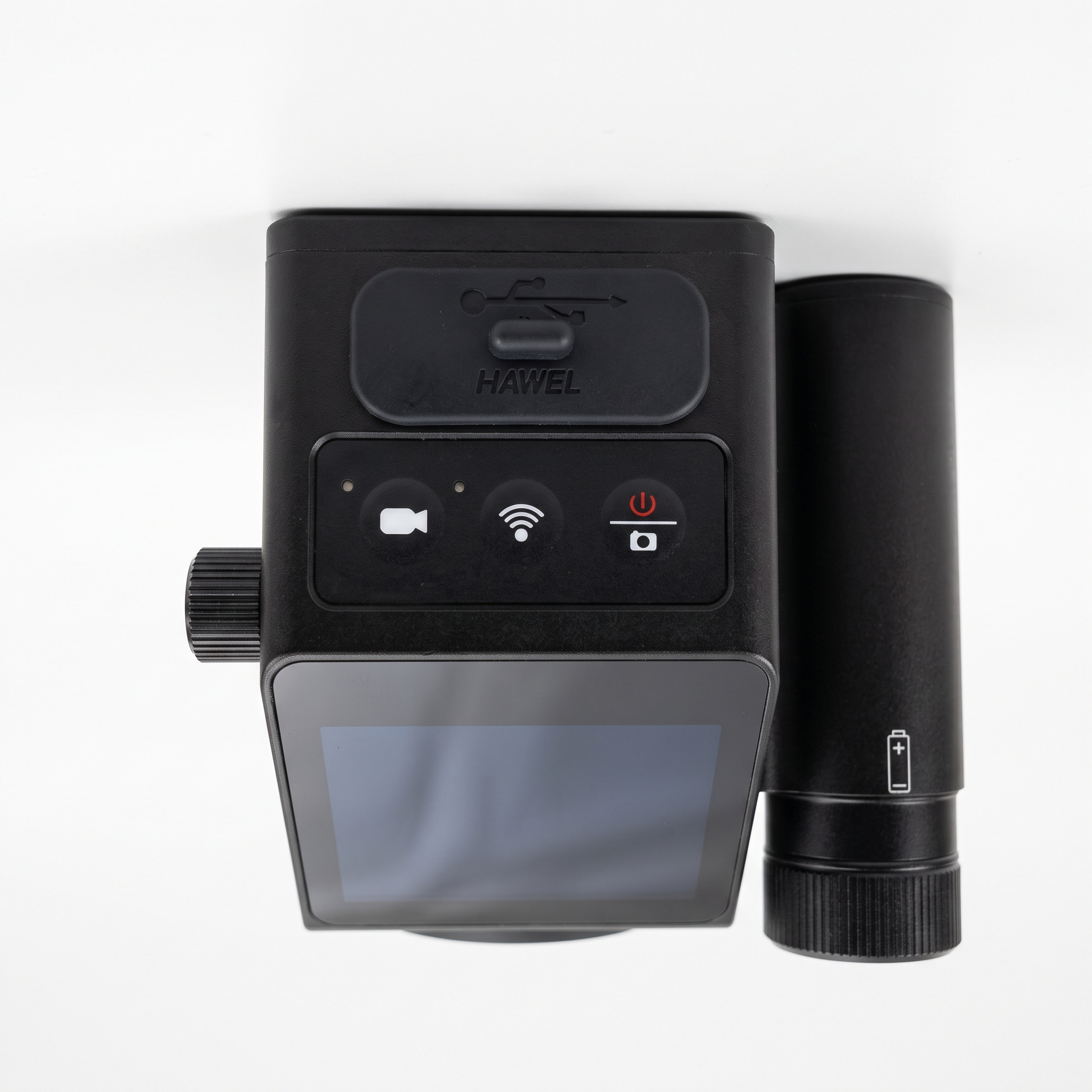

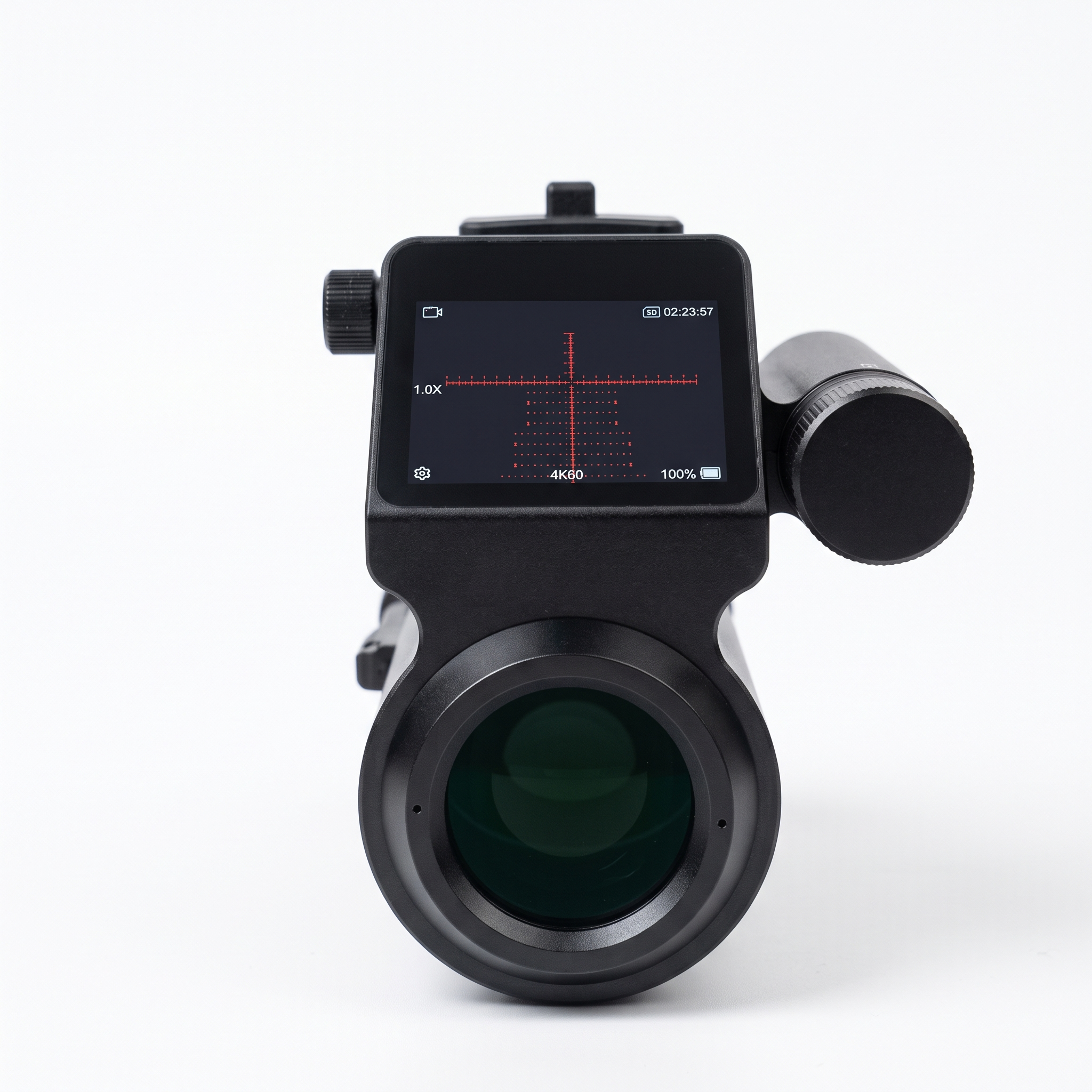

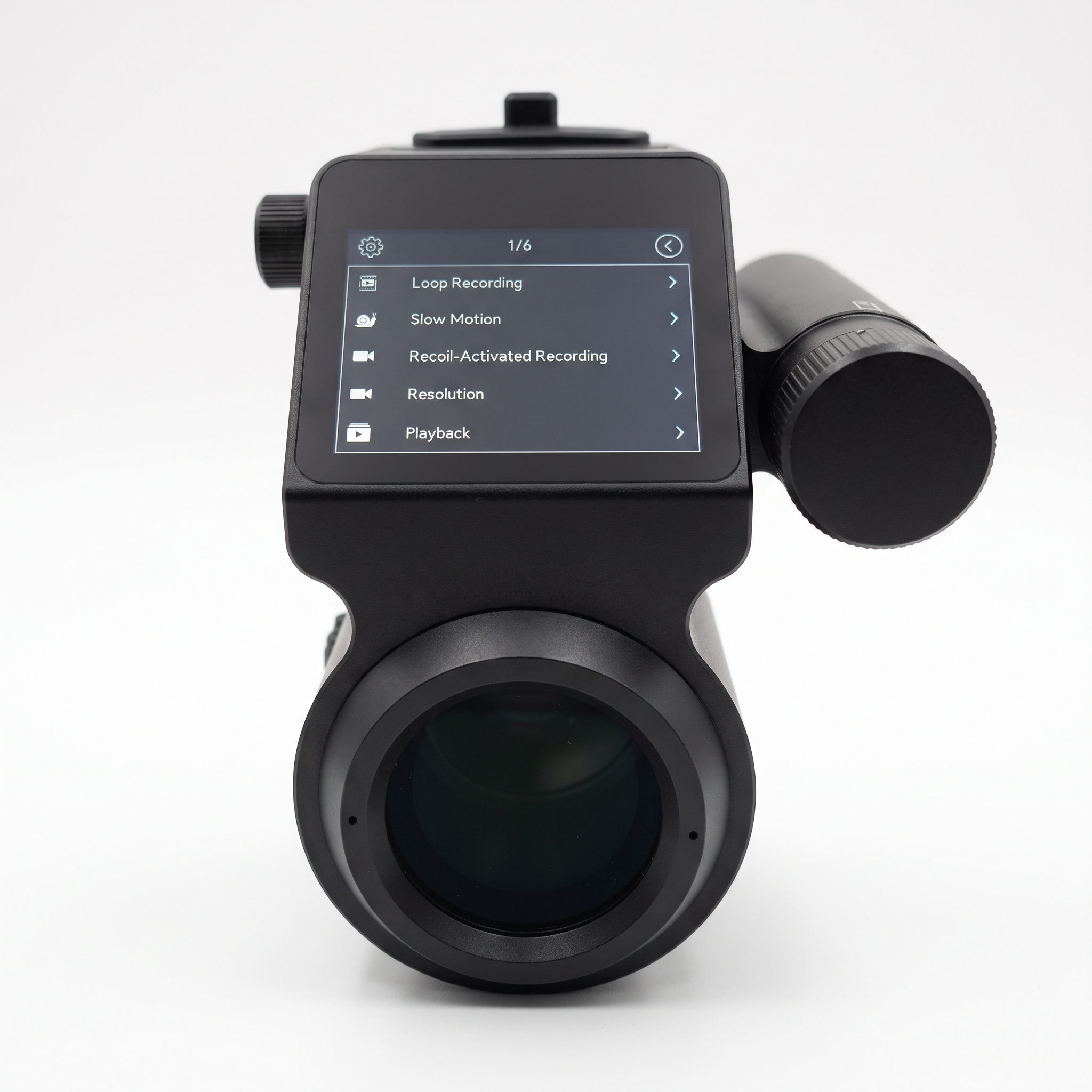

Interactive Touchscreen: Easily adjust settings and preview images on the built-in 2.1-inch HD touchscreen, protected by Corning 3rd Gen Glass.
-
Slow Motion Replay: Review shot placement with automatic 1/4 or 1/8 speed slow-motion replay at 1080p (120 fps) or 720p (240 fps).
-
Wireless Connectivity: Built-in Wi-Fi enables phone or tablet previews, direct social media sharing, and live streaming via the Android and iOS app.
-
Extended Battery Life: The interchangeable 18650 rechargeable battery provides up to 13 hours of continuous recording.
-
All-Weather Durability: Built with an IP64 waterproof rating and whisper-level audio recording for challenging environmental conditions.
Technical Specifications
| Feature | Specification |
| Dimensions |
55 x 107 x 102 mm |
| Weight |
280 g (0.63 lbs) |
| Magnification Power |
1x to 8x (0.5x steps) |
| Ocular Compatibility |
Fits adaptors from 36 mm to 52 mm |
| Operating Temperature |
-10°C to +50°C |
| Storage Support |
Micro SD up to 512 GB (U3 ultra-high-speed recommended) |
| Storage Capacity |
Approx. 25 hours of 4K recording on a 512 GB card |
| Power Source |
5V/2A USB-C; 1x 18650 Battery |
| Parallax Tolerance |
Good tolerance of scope parallax |

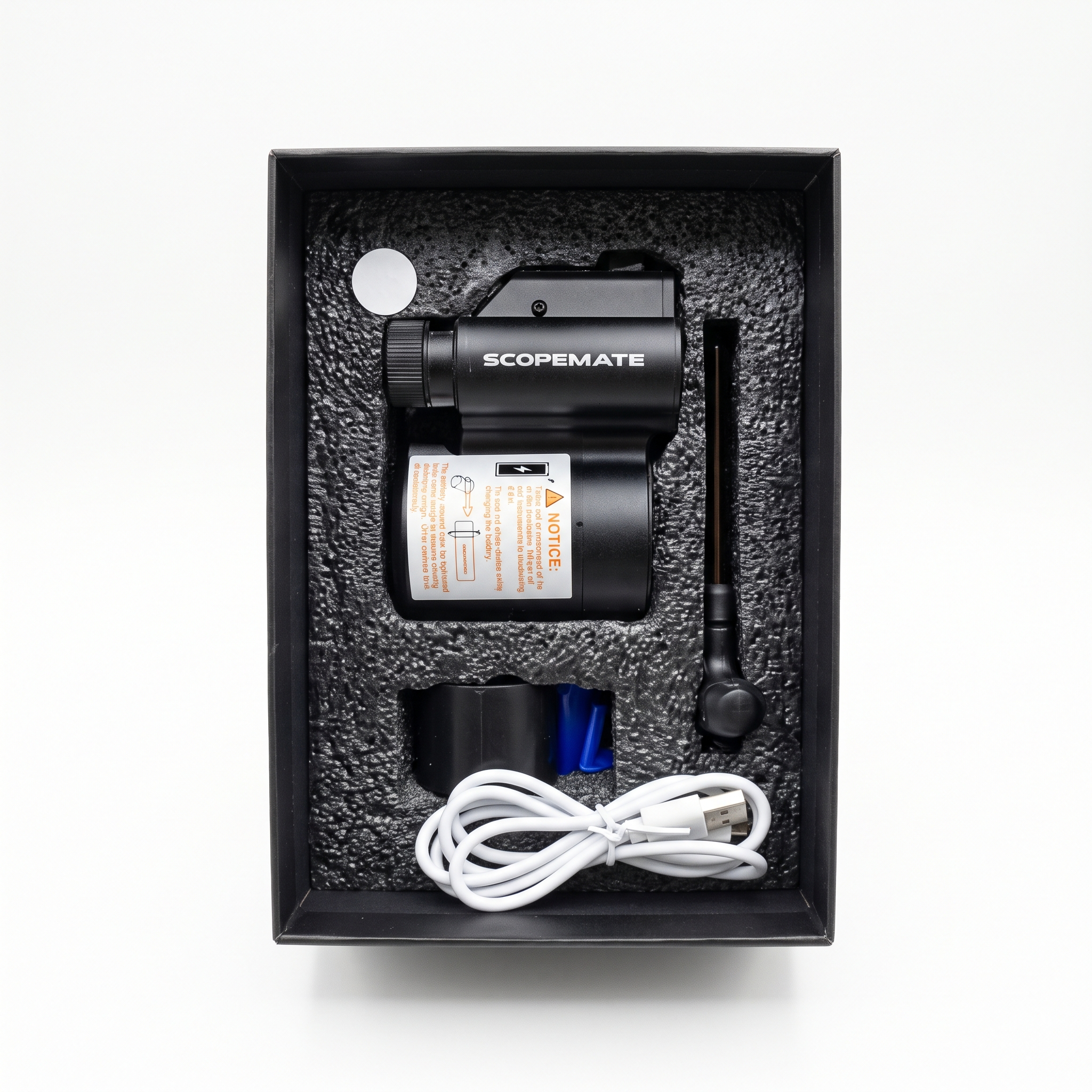

What’s in the Box
-
1x ScopeMate S28-TSC Camera Unit (includes one 18650 battery; remove insulation film before first use)
-

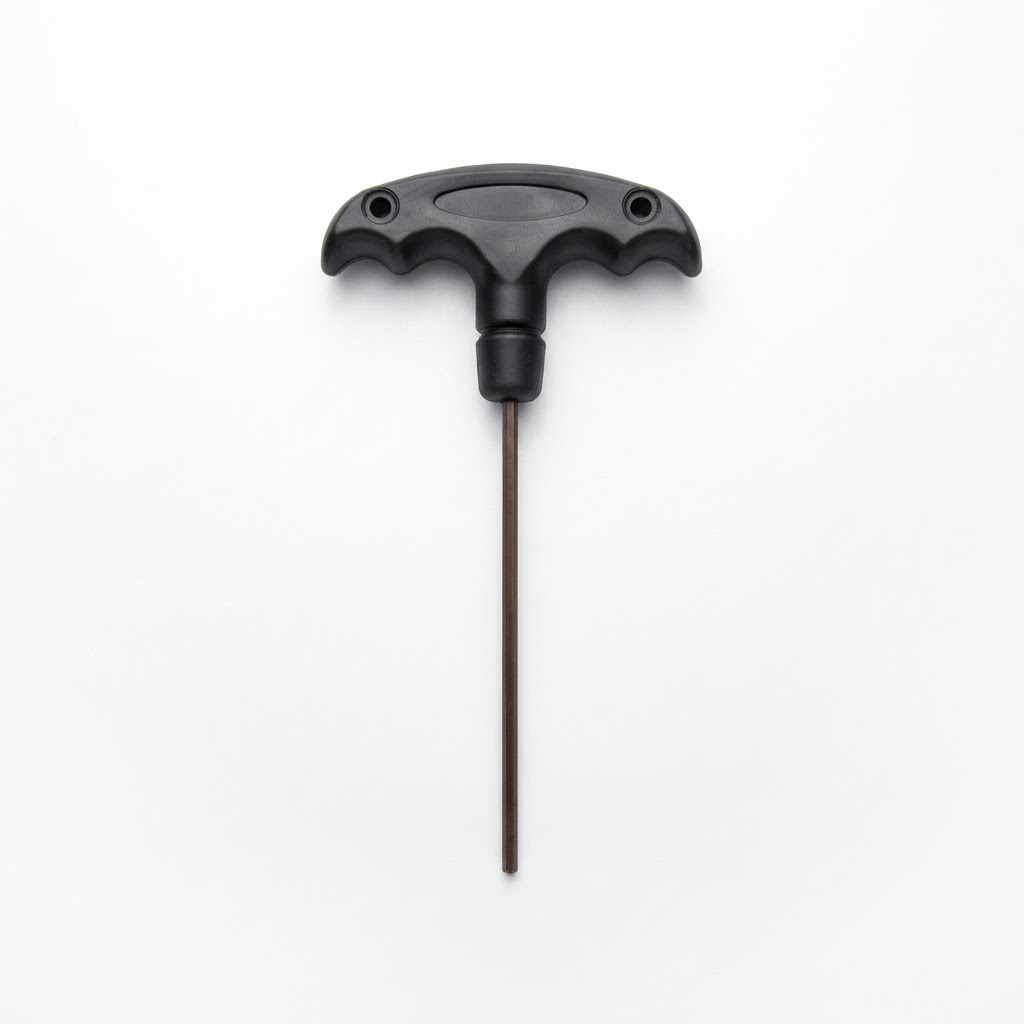

1x Allen Key (Hex-T tightening tool)
-
Scope Adapting Plastic Inserts (for ocular sizes up to 52 mm)
-
1x USB-C Cable (for charging and data transfer)
-

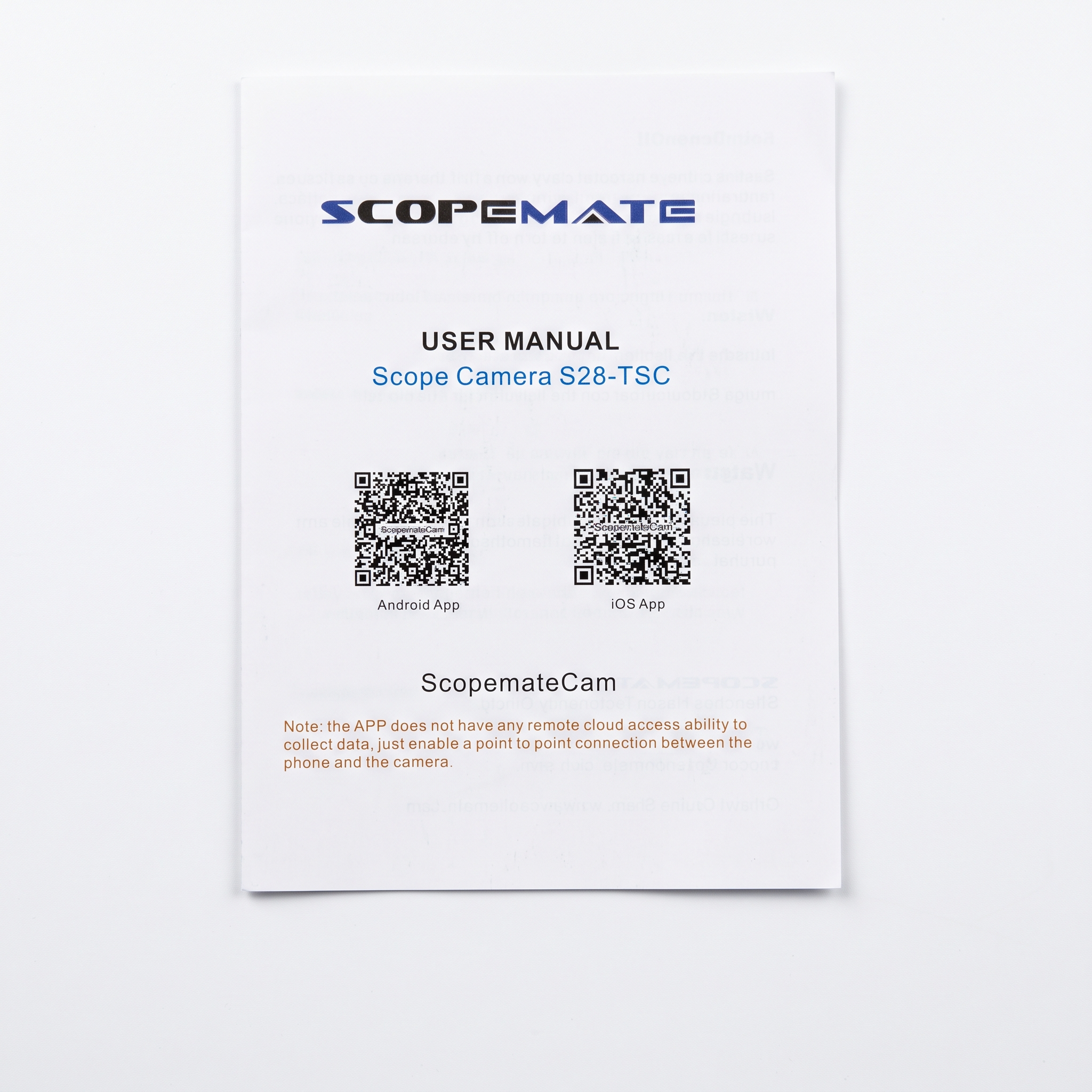

1x User Guide
ScopeMate S28-TSC-MAX PDF
Note on the FFDR Version: The newer S28-TSC Max FFDR model retains all standard hardware and core system features but introduces dual-axis (X and Y) processing for enhanced image leveling and stability. It also provides a larger field of view that captures the full eyepiece, resulting in a full-square video image.
